Automatic Wire Coiling Machine Transformer Coil Winding Machine

Product name : coil winding machine

Usage : making wire coil

Motor power : 4kw

Rotating speed : 0 ~ 200rpm

Wire material : cu wire or al wire

Wire type : flat or round wire

Color : as request

Warranty : 12 months

Brand Name : STT

Model Number : ZPX600

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : USD8000-15000

Payment Terms : T/T,L/C

Supply Ability : 100 sets per year

Delivery Time : 35 days

Packaging Details : seaworthy packing

Contact Now

Automatic Wire Coiling Machine Transformer Coil Winding Machine

Introduction of Automatic Coil Winding Machine ZPX600

The ZPX600 is a professional wire coil winder designed for transformer coils and similar applications. This versatile machine handles both copper and aluminum wire with precision. Its servo motor-driven wire guide ensures accurate movement and automatic wire laying during operation. Equipped with PLC and HMI controls, the ZPX600 offers high automation and user-friendly operation, featuring slow starting and smooth running capabilities.

Main Features

Slow starting mechanism
Smooth running operation
Strong pulling force
High reliability and durability
Precision accuracy
Full-featured functionality

Technical Specifications

Parameter	Value
Center Height	900mm
Square Shaft Size	40x40x900mm
Winding Width	600mm max.
Servo Motor Power	0.75kw
Winding Speed	0 ~ 200 rpm
Max. Flat Wire Size	5X12mm
Round Wire Capacity	Ø0.3 ~ 5.0mm
Finished Coil OD.	Ø600mm max
Counting Mode	5-digit counting
Counting Turn Range	0 - 9999.9

Automatic Wire Coiling Machine Transformer Coil Winding Machine

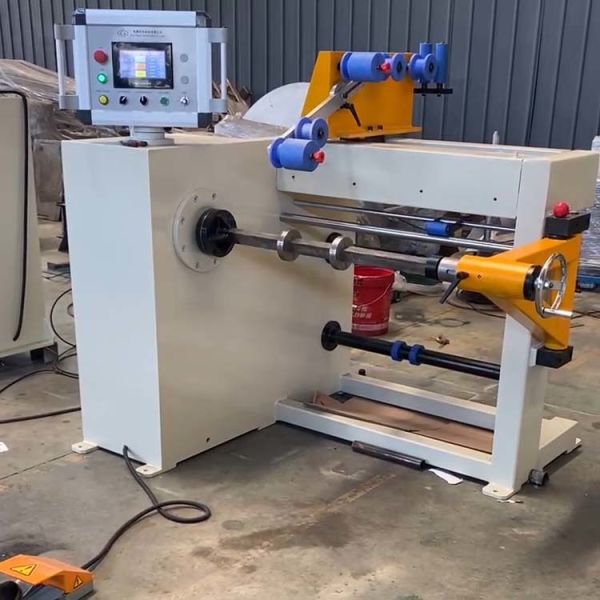

Fig 1: Automatic coil winding machine ZPX600's front view

Fig 2: Automatic coil winding machine ZPX600's wire guide
