Transformer Core Stacking Table With Handheld Controller For Stacked Core Tilting
1. Product Overview

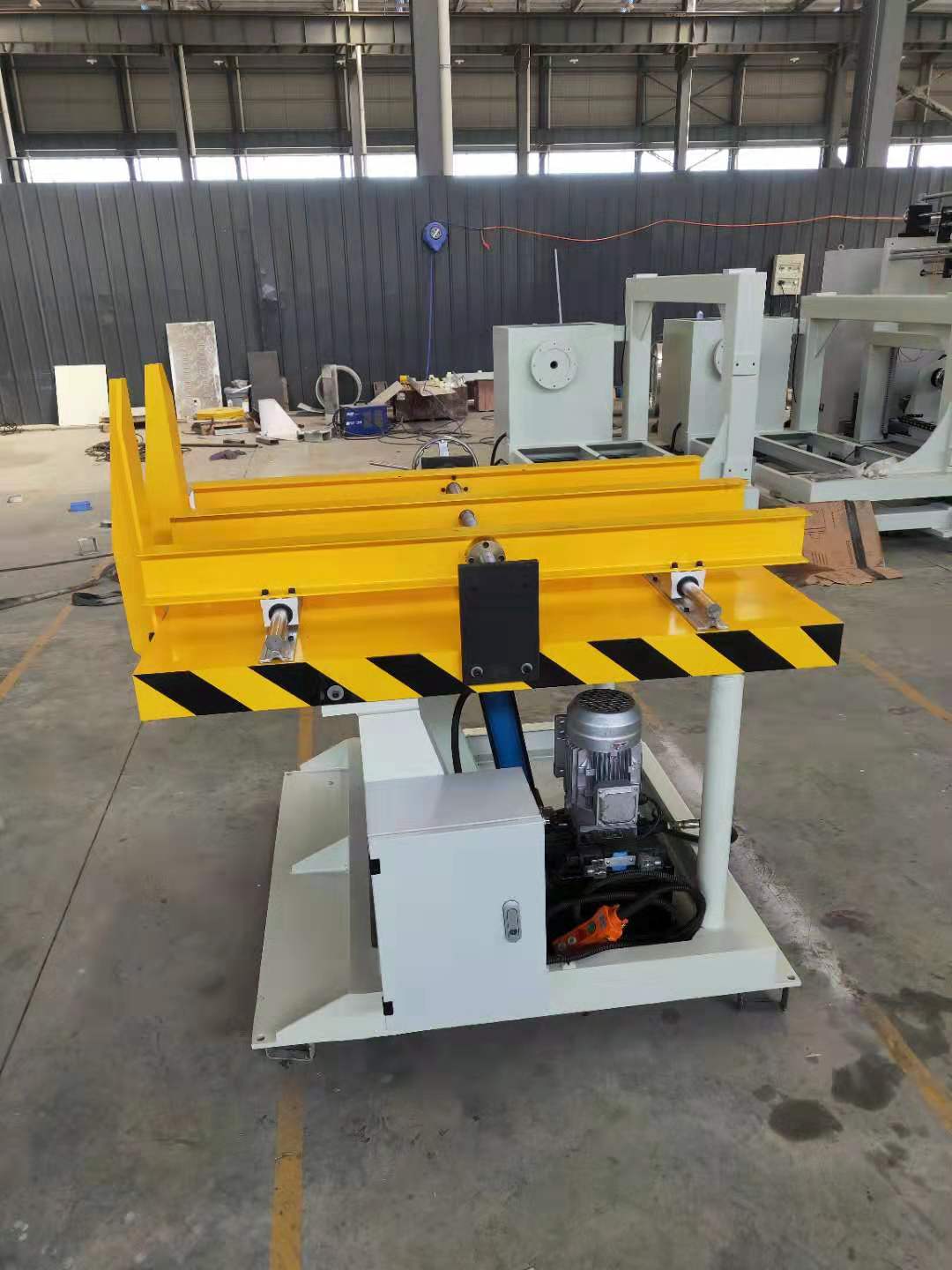

FZT-1T Transformer Core Stacking Table is a professional hydraulic tilting worktable specially designed for transformer core assembly and stacking. Equipped with a reliable hydraulic station and handheld controller, this core stacking machine supports precise linear positioning and platform tilting, effectively solving the difficulty of taking out stacked transformer cores from conventional fixed worktables. Widely applicable for standardized stacking and processing of various transformer iron cores and similar electromagnetic components, the equipment features stable operation, high stacking accuracy, and flexible parameter adjustment. It is an essential auxiliary device for transformer manufacturing workshops to improve production efficiency and product consistency.
- High Stacking Precision: Achieves stacking accuracy of 0.1~0.2mm, effectively guaranteeing the assembly precision of transformer cores and reducing product defective rate.
- Flexible Adjustable Structure: The distance between support columns is freely adjustable, compatible with transformer cores of different sizes and thicknesses (max thickness 400mm), meeting diverse production needs.
- Humanized Operation: Matched with a handheld controller for portable, convenient and flexible on-site operation; equipped with a safe operator interface to ensure construction safety.
- Durable & Customizable: Solid mechanical structure supports 1000kg heavy-load stacking; machine color can be customized according to customer workshop standards.
- Reliable After-sales Service: Comes with 12-month full warranty, supporting long-term stable industrial continuous operation.
2. Full Technical Parameters
All standard specifications of the FZT-1T transformer core stacking table are listed below. All parameters can be customized and modified according to customer actual production requirements.
|
Item
|
Technical Specification
|
|
Product Model
|
FZT-1T
|
|
Platform Size
|
1300 × 1000mm
|
|
Maximum Stacked Core Weight
|
1000kg
|
|
Stacking Accuracy
|
0.1 ~ 0.2mm
|
|
Platform Height from Floor
|
1000mm
|
|
Maximum Stacked Core Thickness
|
400mm
|
|
Tilting Speed
|
90°/Min
|
|
Column Spacing
|
Fully Adjustable
|
|
Driving Mode
|
Hydraulic Drive
|
|
Motor Power
|
1.5KW
|
|
Standard Configuration
|
1 Set Hydraulic Station + Hand Held Controller
|
|
Customization
|
Machine color & parameters customizable
|
|
Warranty Period
|
12 Months
|
3. Product Application
This hydraulic tilting core stacking table is widely used in transformer manufacturing factories, electromagnetic equipment workshops, and electrical component production lines. It is mainly used for precise stacking, assembly and turnover of transformer iron cores, greatly improving stacking efficiency, reducing manual labor intensity, and ensuring the uniformity and precision of finished transformer cores.
FZT-1T transformer core stacking table with handheld tilting platform, 1000kg load capacity, 0.1-0.2mm high precision, hydraulic drive adjustable core stacking machine for transformer manufacturing.
